Home / Precision Machined Products / "1/4" - 28 TAPER THREAD GREASE FITTINGS
Manufactured from mild steel

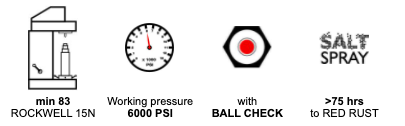

Uniformly case hardened 0.005" - 0.009"
Yellow zinc plated for maximum resistance to corrosion
SAE-LT taper threads should be assembled onto 1/4“-28 UNF, Class 3B, straight threaded holes with a modified maximum dia of 0.2151“ to ensure 75% thread contact
| Art.Nr | Type | Overall Length (mm) | Shank Length (mm) | Effective Thread Length (min) | Hex Size (A/F) (mm) |
|---|---|---|---|---|---|

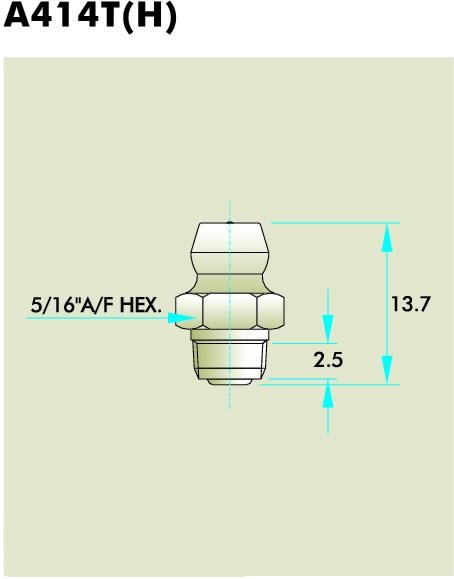

| A414T (H) | Straight | 13.7 | 4.6 | 2.5 | 5/16 |

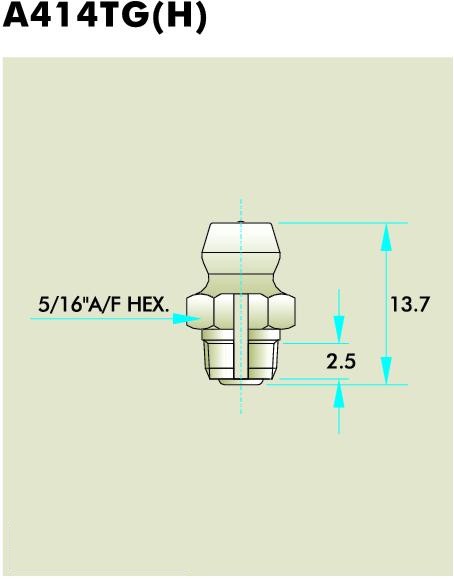

| A414TG (H) | Straight with slot | 13.7 | 5.33 | 2.5 | 5/16 |

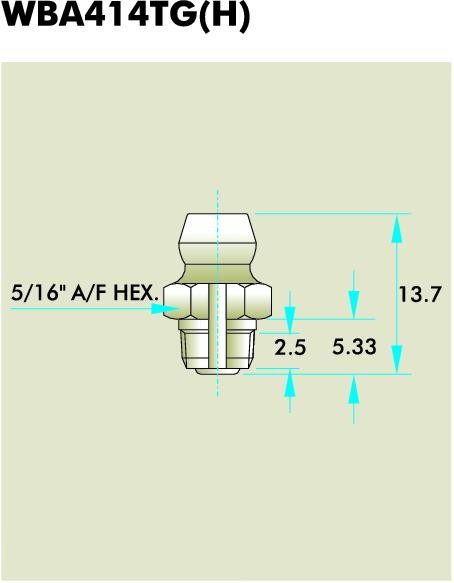

| * WBA414TG (H) | Straight with slot | 13.7 | 5.33 | 2.5 min | 5/16 |

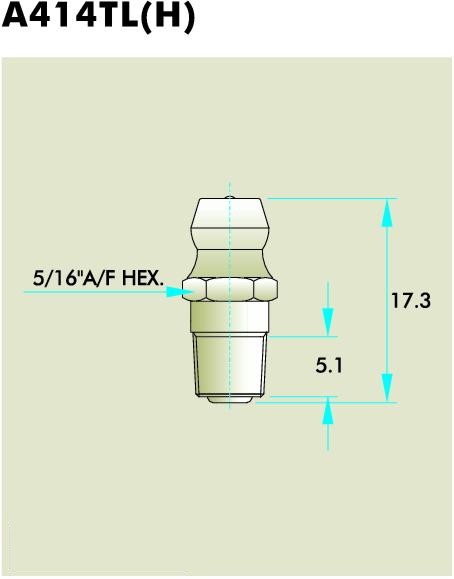

| A414TL (H) | Straight | 17.3 | 8.6 | 5.1 | 5/16 |

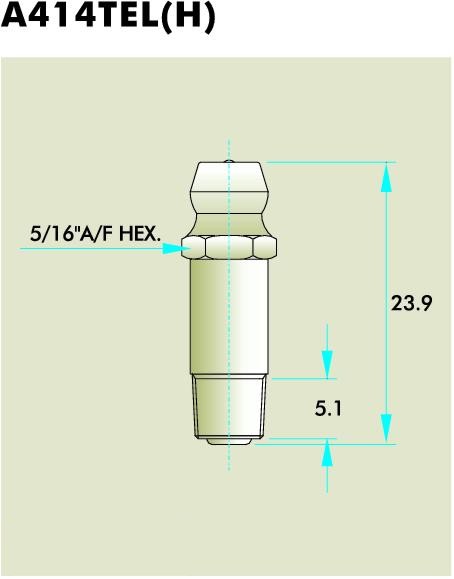

| A414TEL (H) | Straight | 23.9 | 15.7 | 5.1 | 5/16 |
| A414TEL2(H) | Straight | 28.6 | 19.8 | 5.2 | 5/16 |
| 1265(H) | Straight | 41.3 | 32.5 | 5.2min | 5/16 |
| * Fitting without Ball Check | |||||
